Q-EX Control System
- Atex Ex II 2GD Ex d IIB, Ex tD A21
Certificates
Technical details
Datasheet, Manuals and Drawings

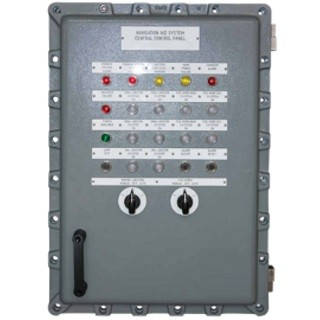

Details Q-EX Control System
The Q-EX Control is the standard solution for switching on and off your lighting groups on the Zone 1 or Zone 2 area on the helideck. The basic functions are implemented by using only high quality branded components. The Q-Control can operate 6 groups of 16A each.
The Q-EX Control has five switches that can be manually switched on and off. The Q-Control also has a factory standard built-in interface that allows for remote control. Using remote control offers the Q-EX Control to switch on several groups by a radio controller or any desired interface. In addition to switching on and off groups remotely, the power active and fault light indicators are also interfaced to display remotely.
Additional Information
| Article Number: | Q31WM01 or Q31WM02 |
| Manufacturer: | Q-Aviation B.V. |
| HS-Code: | 94054039 |
| Warranty: | 2 Years |
Product Specifications Q-EX Control System
| Application: | Helideck |
| Zone: | Zone 1 or 2 |
| Light Color: | Specified by customer |
| Light Source: | N/A |
| Enclosure: | Seawater resistant aluminium |
| Mounting: | Wallmount |
| Input Voltage: | 380 Vac |
| Tested Ambient Temp: | -30° to +70°C |
| Cable: | H07RN-F 3x1 |
| Suitable For: | Hazardous Area |
| Ingress Protection: | IP66 |
| In Compliance With: | Atex Ex II 2GD Ex d IIB, Ex tD A21 |
Size and Dimension
| Weight: | 26,4 kg |
| Dimension: | 73 x 52 x 22 cm ( L x W x H ) |
| Dimension Packaging: | 65 x 65 x 30 cm ( L x W x H ) |
