Q-Floodlight

  • ICAO annex 14, CAP437
  • Safe area Atex / Zone 1

    Certificates

    CAP437 ICAO

    Technical details

    IP67 CE ROHS

    Datasheet, Manuals and Drawings

Details Q-Floodlight

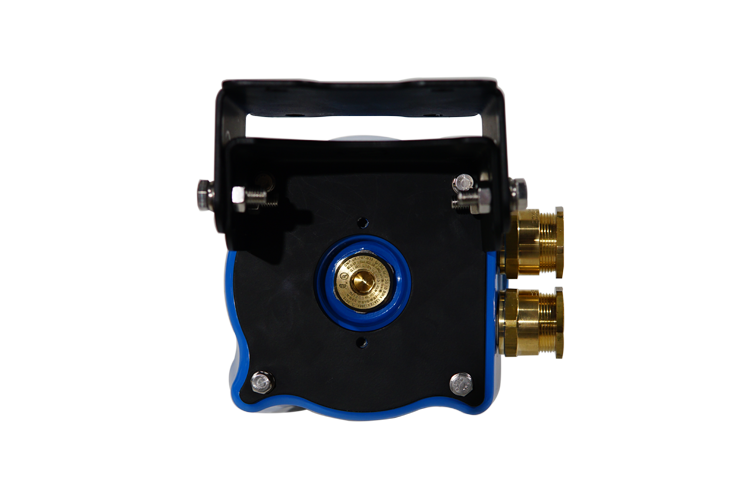

The Q-Offshore Floodlight is a CAP437 compliance 5000 cd floodlight for Helidecks. The Q-Offshore Floodlight has special optics which causes no dazzling pilots due to the precise angles of the 5000 cd light output. The Q-Offshore Floodlight is available in several configurations such as 100-240 VAC and 24 VDC.

The floodlighting should be arranged so as not to dazzle the pilot and, if elevated and located off the landing area clear of the Limited Obstacle Sector (LOS), the system should not present an obstacle to helicopters landing and taking off from the helideck. All floodlights should be capable of being switched on and off at the pilot"s request. Setting up of lights should be undertaken with care to ensure that the issues of adequate illumination and glare are properly addressed and regularly checked. For some decks it may be beneficial to improve depth perception by floodlighting the main structure or "legs" of the platform.

Order code Q12RI03 – Offshore Floodlight

Q12RI03–11R1 Input power: 100-240 VAC
Q12RI03–12R1 Input power: 24 VDC

More Q-Floodlights

Additional Information
Article Number: Q12RI03
Manufacturer: Q-Aviation B.V.
HS-Code: 94054039
Warranty: 2 Years
Product Specifications Q-Floodlight
Application: Helideck
Hazardous area: Safe Area
Light Color: White (5700K)
Light Source: LED, steady burning
Light Intensity: 5.000 cd
Enclosure: Aluminium, Powder coated RAL5015 / Borosilicate glass
Mounting: Rigid, 4x M8
Input Voltage: 100-240 VAC or 24 VDC
External earthing: up to 4mm2 / AWG 12
Tested Ambient Temp: -25°C to + 60°C
Cable side entries:2 x M25x1.5
Cable bottom entry: 1 x M25x1.5
Cable size: 11 - 19mm
Cable stops included : 1 x M25x1.5
Consumption: 8 Watt
Life expectancy: 100.000+ hours
Cable: H07RN-F 3x2,5mm²
Earth Connection: up to 4mm2 / AWG 12
Ingress Protection: IP67
In Compliance With: ICAO annex 14, CAP437
Cable glands included: 2 x M25x1.5
Cable stops included : 1 x M25x1.5
Inrush Current: 70A / 120µs
MAX. No. of units: 20 units on a C16A Circuit breaker
Size and Dimension
Weight: 5.1 Kg
Dimension: 255x159x168mm (LxWxH)
Dimension Packaging: 250x250x250mm (LxWxH)
