Double obstruction Light 32 cd

Q-Aviation Obstruction Lights are low intensity or medium intensity class aircraft warning lights. The different types of AWL/obstruction lights comply to FAA, ICAO and CAA regulations. The obstruction lights are suitable for every high structure such as: wind turbines, explosion risk zones, chimneys, tower cranes, flares, buildings, pylons, water tanks and chemical petro.

Safe Area

Obstruction-Light-Low-Intensity-32-cd-Do

  • ICAO annex 14 type B

Certificates

ICAO

Technical details

IP67 CE ROHS

Datasheet, Manuals and Drawings

Details

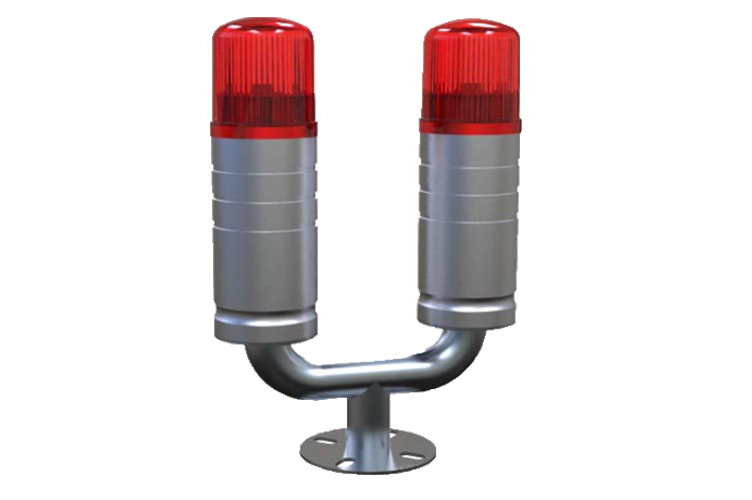

The Q-Obstruction Light is a ICAO compliance 32 cd Double Obstruction light for all facilities. The Double Obstruction Light is available in the configurations 100-240 Vac and 24 Vdc.

An omni-directional low intensity steady red obstruction light is fitted to the highest point of the installation. The light conforms to the specifications for a low intensity obstacle light having a minimum intensity of 50 cd for angles of elevation between 0 and 15 degrees, and a minimum intensity of 200 cd between 5 and 8 degrees. Where it is not practicable to fit a light to the highest point of the installation (e.g. on top of flare towers) the light is fitted as near to the extremity as possible.

Order code Q82RI03 - Double obstruction Light Type B

Q82RI03–11 Input power: 100-240 Vac
Q82RI03–12 Input power: 24 Vdc

Additional Information

Article Number: Q82RI03
Manufacturer: Q-Aviation
HS-Code: 94054031
Warranty: 2 Years

Product Specifications

Application: Obstruction Lighting
Incompliance with: ICAO annex 14 type B
Light Color: Red, 630 nm
Light Source: LED, steady burning
Light Intensity: 32 cd
Day / nightsensor: Built-in
Fault relay: Potential free relay
Vertical Beam Profile: as per ICAO
Enclosure: Aluminium, Anodized
Mounting: Pole mounted
Input Voltage: 1) 100-240 Vac 50-60 Hz
2) 24 Vdc
Cable: On Request
Suitable For: Safe Area
Tested Ambient Temp: -40°C to +55°C
Colour chromaticity :: as per ICAO, 630 nm
Cable glands included: None
Consumption: 5 Watt
Life expectancy: 100.000+ hours

Size and Dimension

Weight: 3.20 kg.
Dimension: 270x120x360 mm (LxWxH)
Dimension Packaging: 300x200x400 mm (LxWxH)
Related Products

Additional Information

Manufacturer: Q-Aviation Q-Aviation
Article Number: Q82RI03
HS-Code: 94054031
Warranty: 2 Years

Product Specifications

Application: Obstruction Lighting
Light Color: Red, 630 nm
Light Source: LED, steady burning
Light Intensity: 32 cd
Vertical Beam Profile: as per ICAO
Enclosure: Aluminium, Anodized
Mounting: Pole mounted
Input Voltage: 1) 100-240 Vac 50-60 Hz
2) 24 Vdc
Cable: On Request
Ingress Protection: IP 65
Tested Ambient Temp: -40°C to +55°C
Incompliance with: ICAO annex 14 type B
Colour chromaticity : as per ICAO, 630 nm
Cable glands included: None
Consumption: 5 Watt
Life expectancy: 100.000+ hours
Day / nightsensor: Built-in
Fault relay : Potential free relay

Size and Dimension

Manufacturer: Q-Aviation Q-Aviation
Weight: 3.20 kg.
Dimension: 270x120x360 mm (LxWxH)
Dimensionpackaging: 300x200x400 mm (LxWxH)
