Q-Status light controller
- ICAO annex 14, CAP437
Certificates
Technical details
Datasheet, Manuals and Drawings

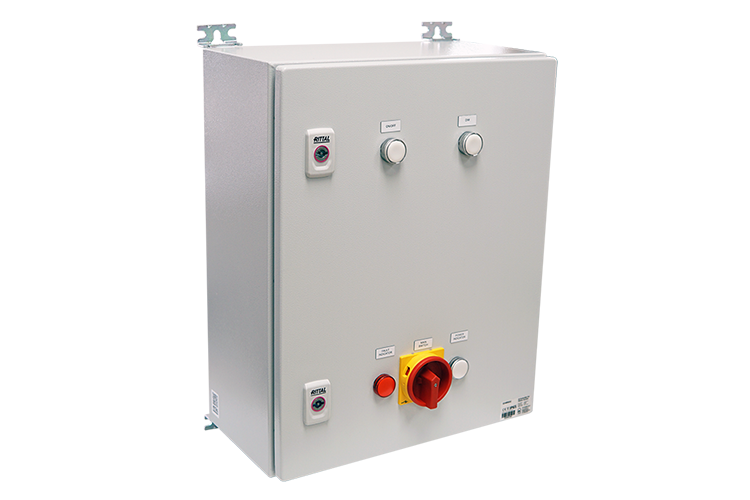

Details Q-Status light controller
A visual warning system should be installed if a condition can exist on an installation which may be hazardous for the helicopter or its occupants. The system (Status Lights) should be a flashing red light (or lights), visible to the pilot from any direction of approach and on any landing heading. The aeronautical meaning of a flashing red light is either “do not land, aerodrome not available for landing” or “move clear of landing area”. The system should be automatically initiated at the appropriate hazard level (e.g. impending gas release) as well as being capable of manual activation by the HLO.
Order code Status Light Control System
Q14RI03C -R1A) This product is not working independently, but is only working with the Q14RI03 – Status Light System.
B) When a complete helideck package is offered, the status light controller can be built in the Q-Control WMX series
Additional Information
Product Specifications Q-Status light controller
Size and Dimension
| Article Number: | Q14RI03C |
| Manufacturer: | Q-Aviation B.V. |
| HS-Code: | 94054039 |
| Warranty: | 2 Years |
| Application: | Helideck |
| Hazardous area: | Safe Area |
| Enclosure: | Steel, Powder coated RAL7035 |
| Mounting: | Wall mount, 4x M8 |
| Input Voltage: | 100-240 VAC 50-60Hz from circuit breaker C20A |
| Tested Ambient Temp: | -20°C to + 50°C |
| Cable side entries: | 4x M25x1.5 |
| Cable size: | 11 - 19mm |
| Consumption: | 5 Watt |
| Output: | 1 x Q-Status Light 2 x Q-Status Light repeater |
| Cable: | H07RN-F 3x2,5mm² |
| Ingress Protection: | IP67 |
| In Compliance With: | ICAO annex 14, CAP437 |
| Intensity modes: | 3% and 100% |
| Fault detection: | Yes, Potential free relay |
| Flash sequence: | 2 Hz |
| Cable glands included: | 4x M25x1.5 |
| Weight: | 11.9 Kg |
| Dimension: | 210x300x400mm (LxWxH) |
| Dimension Packaging: | 430x310x300mm (LxWxH) |
