Home / Obstruction Lights / Q-OBSTRUCTION LIGHT MEDIUM INTENSITY 2.000 CD

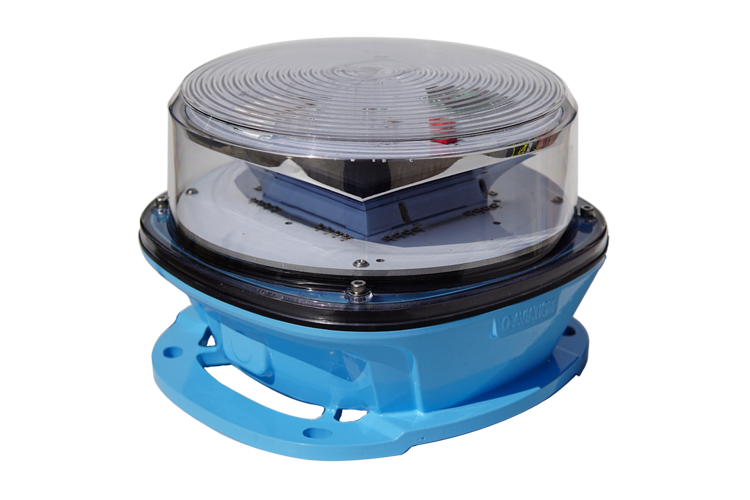

Q-OBSTRUCTION LIGHT MEDIUM INTENSITY 2.000 CD

ICAO annex 14, CAP437

Safe area EX / Zone 1

Certificates

Technical details

Datasheet, Manuals and Drawings

Details Q-OBSTRUCTION LIGHT MEDIUM INTENSITY 2.000 CD

The Q-Obstruction Light Medium Intensity 2000 cd is a ICAO/FAA compliance 2000 cd red obstruction light. The Q-Obstruction Light Medium Intensity 2000 cd Light comes with a mode pushbutton to switch the light from steady burning to flashing.

At all radials throughout the omnidirectional 360 degrees, there must be a peak effective intensity of 2000 ±25% candela. There must also be a minimum effective intensity of 750 candela throughout a minimum vertical beam spread of 3 degrees. Multiple light units may be used to achieve a horizontal coverage of 360 degrees. The flash rate varies from 20 fpm to 60 fpm depending on the chosen configuration. There is also a steady-burning version according to ICAO and CAA.

Order code Q84RI03

Q84RI03–11 Input power: 100-240 VAC
Q84RI03–12 Input power: 24 VDC

Additional Information

Article Number:	Q84RI03
Manufacturer:	Q-Aviation
HS-Code:	94054039
Warranty:	2 Years

Product Specifications Q-OBSTRUCTION LIGHT MEDIUM INTENSITY 2.000 CD

Application:	Obstruction Lighting
Suitable For:	Safe Area
Light Color:	Red, 630nm
Colour chromaticity:	as per ICAO/FAA Red, 630 nm
Light Source:	LED, steady burning + flashing
Light Intensity:	2000 cd
In Compliance With:	ICAO annex 14, CAP437
Vertical Beam Profile:	as per ICAO/FAA
Life expectancy:	100.000+ hours
Enclosure:	Aluminium, Powder coated Blue / Polyacrylate glass
Lens:	PMMA
Modeswitch:	Pushbutton: Mode 1: Steady Burning (15W) Mode 2: 30FPM (< 8W) Mode 3: 60FPM (< 10W)
GPS synchronization:	Yes
Day / nightsensor:	Photo sensor built-in
Mounting:	Rigid, 4x M8
Input Voltage:	1) 100-240 VAC 50-60Hz 2) 24 VDC
Cable:	On Request
Consumption:	Mode 1: Steady Burning (15W) Mode 2: 30FPM (< 8W) Mode 3: 60FPM (< 10W)
Tested Ambient Temp:	-40°C to + 55°C
