Obstruction Light 32 cd

Q-Aviation Obstruction Lights are low intensity or medium intensity class aircraft warning lights. The different types of AWL/obstruction lights comply to FAA, ICAO and CAA regulations. The obstruction lights are suitable for every high structure such as: wind turbines, explosion risk zones, chimneys, tower cranes, flares, buildings, pylons, water tanks and chemical petro.

Safe Area

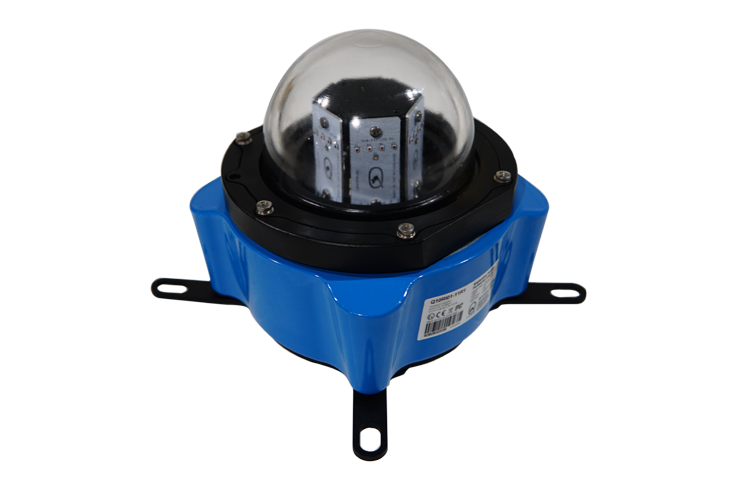

Obstruction Light Low Intensity 32 cd

  • ICAO annex 14, CAP437, CAP168

Certificates

CAP437 CAP168 ICAO

Technical details

IP67 CE ROHS

Datasheet, Manuals and Drawings

Details

The Q-Obstruction Light Low Intensity 32 cd is a ICAO & CAP437 compliance Obstruction light for all facilities. The Obstruction Light is available in the configurations 100-240 VAC and 24 VDC.

The center of the vertical beam spread must be between +4 and +20 degrees. With a minimum vertical beam spread of 10 degrees and at all radials throughout 360 degrees, there must be a minimum intensity of 32 cd. There is also a flashing 30 fpm version according to FAA. This light unit must flash simultaneously with the medium intensity red obstacle light at a rate of 30 fpm (± 3 fpm).

Photometrics

Intensity: 32 cd Operation Mode: Steady-burning or Flashing Horizontal Beam Coverage: Omni-directional Vertical Beam Spread: 10 degrees

Classification

The specifications of this product are according to: - L-810 (Steady-burning) or L-810 (F) (Flashing) (FAA) - Low-intensity, Type B (fixed obstacle) (Steady-burning) (ICAO)

Order code Q81RI03 – Obstruction Light 32cd

Q81RI03–11R1 Input power: 100-240 VAC
Q81RI03–12R1 Input power: 24 VDC

Additional Information

Article Number: Q81RI03
Manufacturer: Q-Aviation
HS-Code: 94054039
Warranty: 2 Years

Product Specifications

Application: Obstruction Lighting
Incompliance with: ICAO annex 14, CAP437, CAP168
Light Color: Red, 630nm
Light Source: LED, steady burning
Lens: Borosilicate glass
Light Intensity: 32 cd
Vertical Beam Profile: as per CAP437/ICAO
Enclosure: Aluminium, Powder coated RAL5015 / Borosilicate glass
Mounting: Rigid, 4x M8
Input Voltage: 1) 100-240 VAC 50-60Hz
2) 24 VDC
Cable: H07RN-F 3x2,5mm²
Suitable For: Safe Area
Earth Connection: up to 4mm2 / AWG 12
Tested Ambient Temp: -25°C to + 60°C
Hazardous area: Safe Area
Class: Safe Area
Colour chromaticity :: as per CAP437/ICAO
Cable size: 11 - 19mm
Cable side entries:2 x M25x1.5
Cable bottom entry: 1 x M25x1.5
Cable glands included: 2 x M25x1.5
Cable stops included : 1 x M25x1.5
Cable outer dimension : 11 - 19mm
Consumption: 6 Watt
Life expectancy: 100.000+ hours
External earthing: up to 4mm2 / AWG 12

Size and Dimension

Weight: 4.2 Kg
Dimension: 183x183x150mm (LxWxH)
Dimension Packaging: 200x200x200mm (LxWxH)
Related Products

Hazardous Area

EXPLOSION PROOF OBSTRUCTION LIGHT LOW IN

  • Atex Zone 1 and 2 / Class 1 Hazardous Area

Certificates

CAP437 CAP168 ICAO ATEX IECEX

Technical details

IP67 CE ROHS

Datasheet, Manuals and Drawings

Details

The Q-Explosion Proof Obstruction Light Low Intensity 32 cd is a ICAO & CAP437 & CAP168 compliance 32 cd Obstruction light for hazardous areas up to zone 1 for. The Q-Explosion Proof Obstruction Light is available in several configurations such as 100-240 VAC and 24 VDC.

The center of the vertical beam spread must be between +4 and +20 degrees. With a minimum vertical beam spread of 10 degrees and at all radials throughout 360 degrees, there must be a minimum intensity of 32 cd.

Photometrics

Intensity: 32 cd Operation Mode: Steady-burning Horizontal Beam Coverage: Omni-directional Vertical Beam Spread: 10 degrees

Classification

The specifications of this product are according to: - L-810 (FAA) - Low-intensity, Type B (fixed obstacle) (ICAO)

Order code Q81RI01 – EX Obstruction Light 32 cd

Q81RI01–11 Input power: 100-240 VAC
Q81RI01–12 Input power: 24 VDC

Q81RI01–AL Aluminium, Powder coated Housing
Q81RI01–SS SS316, Powder coated Housing

Additional Information

Article Number: Q81RI01
Manufacturer: Q-Aviation
HS-Code: 94054039
Warranty: 2 Years

Product Specifications

Application: Obstruction Lighting
Incompliance with: ICAO annex 14, CAP437, CAP168
Light Color: Red, 630nm
Light Source: LED, steady burning
Lens: Borosilicate glass
Light Intensity: 32 cd
Vertical Beam Profile: as per CAP437/CAP168/ICAO/FAA
Enclosure: Aluminium, Powder coated RAL5015 / Borosilicate glass
Mounting: Rigid, 4x M8
Input Voltage: 1) 100-240 VAC 50-60Hz
2) 24 VDC
Cable: H07RN-F 3x2,5mm²
Suitable For: Hazardous Area
Earth Connection: up to 4mm2 / AWG 12
Tested Ambient Temp: -25°C to + 60°C
Hazardous area: Atex Zone 1 and 2
Class: Class 1 Hazardous Area
Colour chromaticity :: as per CAP437/CAP168/ICAO/FAA
Cable size: 11 - 19mm
Cable side entries:2 x M25x1.5
Cable bottom entry: 1 x M25x1.5
Cable glands included: 2 x M25x1.5
Cable stops included : 1 x M25x1.5
Cable outer dimension : 11 - 19mm
Consumption: 6 Watt
Life expectancy: 100.000+ hours
External earthing: up to 4mm2 / AWG 12

Size and Dimension

Weight: 4.2 Kg
Dimension: 183x183x150mm (LxWxH)
Dimension Packaging: 200x200x200mm (LxWxH)
Related Products

Additional Information

Manufacturer: Q-Aviation Q-Aviation
Article Number: Q81RI03Q81RI01
HS-Code: 9405403994054039
Warranty: 2 Years2 Years

Product Specifications

Application: Obstruction LightingObstruction Lighting
Light Color: Red, 630nmRed, 630nm
Light Source: LED, steady burning LED, steady burning
Light Intensity: 32 cd 32 cd
Vertical Beam Profile: as per CAP437/ICAOas per CAP437/CAP168/ICAO/FAA
Enclosure: Aluminium, Powder coated RAL5015 / Borosilicate glassAluminium, Powder coated RAL5015 / Borosilicate glass
Mounting: Rigid, 4x M8Rigid, 4x M8
Input Voltage: 1) 100-240 VAC 50-60Hz
2) 24 VDC		1) 100-240 VAC 50-60Hz
2) 24 VDC
Cable: H07RN-F 3x2,5mm²H07RN-F 3x2,5mm²
Earth Connection: up to 4mm2 / AWG 12up to 4mm2 / AWG 12
Ingress Protection: IP67IP67
Tested Ambient Temp: -25°C to + 60°C-25°C to + 60°C
Input Power: 100-240 VAC 50-60Hz100-240 VAC 50-60Hz
Incompliance with: ICAO annex 14, CAP437, CAP168ICAO annex 14, CAP437, CAP168
Hazardous area: Safe AreaAtex Zone 1 and 2
Class: Safe AreaClass 1 Hazardous Area
Colour chromaticity : as per CAP437/ICAO as per CAP437/CAP168/ICAO/FAA
Cable side entries : 2 x M25x1.5 2 x M25x1.5
Cable size : 11 - 19mm 11 - 19mm
Cable bottom entry : 1 x M25x1.5 1 x M25x1.5
Cable glands included: 2 x M25x1.5 2 x M25x1.5
Cable stops included : 1 x M25x1.5 1 x M25x1.5
Cable outer dimension : 11 - 19mm 11 - 19mm
Consumption: 6 Watt6 Watt
Life expectancy: 100.000+ hours 100.000+ hours
External earthing : up to 4mm2 / AWG 12 up to 4mm2 / AWG 12
lens: Borosilicate glassBorosilicate glass

Size and Dimension

Manufacturer: Q-Aviation Q-Aviation
Weight: 4.2 Kg4.2 Kg
Dimension: 183x183x150mm (LxWxH)183x183x150mm (LxWxH)
Dimensionpackaging: 200x200x200mm (LxWxH) 200x200x200mm (LxWxH)
Related Products
