Home / Helideck lighting systems / Explosion Proof Offshore Control System WEX5

Offshore | Explosion Proof Offshore Control System WEX5

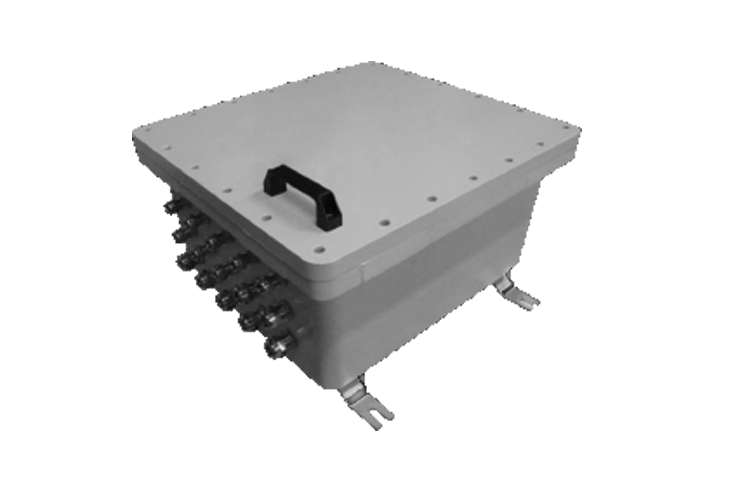

Explosion Proof Offshore Control System WEX5

ICAO annex 14, CAP437

Certificates

Technical details

Datasheet, Manuals and Drawings

Details Explosion Proof Offshore Control System WEX5

The Q-Offshore Explosion Proof Control System WEX5 comes with an explosion proof touch panel. The Touch panel is 15", 1024 x 768 pixels XGA as is approved for Hazardous Areas Classified Locations Helideck Monitor with Completely Sealed IP65 Stainless Steel enclosure.

Q-Explosion Proof Offshore Control System:

Perimeter Lights
Floodlights
Windsock
Obstruction lights
TD/PM system
Status Light System

Order code Q31WEX5

Q31WEX5-R1 Controller for Helideck Lights including, Q-Status Light System and TD/PM System

TOUCHPANEL DETAILS

SA 12.12.01-2012, CSA C22.2 No.213-M1987, CSA 22.2 No. 60950-1- 07
FCC certification
UL Class 1 Division 2, Groups A, B, C, D certified
ATEX 94/9/EC, and CE certification
Ex II 3 G Ex nA ic IIA T4 certified
Hazardous areas industrial monitor improved environment for the operators

Additional Information

Article Number:	Q31WEX5
Manufacturer:	Q-Aviation B.V.
HS-Code:	94054039
Warranty:	2 Years

Product Specifications Explosion Proof Offshore Control System WEX5

Application:	Helideck
Zone:	Safe Area
Enclosure:	Aluminium coated RAL7035
Mounting:	Wallmount
Input Voltage:	100-240 VAC 50-60Hz from circuit breaker C20A
Tested Ambient Temp:	-20°C to +50°C
Cable bottom entry:	12x M25x1.5
Cable size:	12 - 19mm
Consumption:	5 Watt
Life expectancy:	100.000+ hours
Output voltage:	100-240 Vac 50-60Hz
Cable:	H07RN-F 3x2,5mm²
Suitable For:	Safe Area
Ingress Protection:	IP54
In Compliance With:	ICAO annex 14, CAP437
Fault detection:	Yes, Potential free relay
Hazardous area:	Safe Area
Class:	Safe Area
Cable glands included:	> 13x M25
Ip index:	IP54

Size and Dimension

Weight:	26,4 kg
Dimension:	835 x 610 x 315 mm
Dimension Packaging:	900 x 700 x 350 mm
