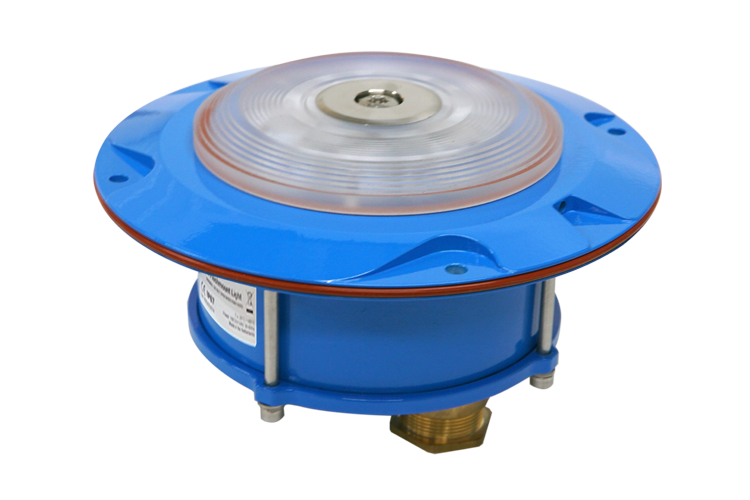

Q Flushmount Helipad Perimeter Light

Certificates

Technical details

Datasheet, Manuals and Drawings

Details

The Q-Flushmount Helipad Perimeter Light is an ICAO compliance 50 cd perimeter light for all Helipad and Heliport facilities where flush installation is preferred. The Q-Flushmount Helipad Perimeter Light is available in several configurations such as 100-240 VAC and 24 VDC.

The Q-Flushmount Perimeter Light, spaced at intervals of not more than 3 m, should be fitted around the perimeter of the landing area of the helideck or helipad/port. For any application, the Q-Flushmount Perimeter Light will not exceed a height of 25 mm above the surface. The Q-Flushmount Perimeter Light is made for flushmount facilities. When the Q-Flushmount Perimeter Light is used on the surface, a Q-Seating Pot will be needed to mount the Q-Flushmount Perimeter Light correctly.

Order code Q10FM03 – Q-Flushmount Perimeter Light

Q10FM03–11R1 Input power: 100-240 VAC
Q10FM03–12R1 Input power: 24 VDC

Additional Information

Article Number:	Q10FM03
Manufacturer:	Q-Aviation B.V.
HS-Code:	94054039
Warranty:	2 Years

Product Specifications

Application:	Helipad
Suitable For:	Safe Area
Zone:	Safe Area
MAX. No. of units:	20 units on a C16A Circuit breaker
Inrush Current:	70A / 120µs
Light Color:	Green, 530nm
Light Source:	LED, steady burning
Light Intensity:	50 cd
Enclosure:	Aluminium, Powder coated RAL5015
Mounting:	Flushmount, 4x M6
External earthing:	up to 4mm2 / AWG 12
Input Voltage:	100-240 VAC or 24 VDC
Cable:	H07RN-F 3x2,5mm²
Tested Ambient Temp:	-25°C to + 60°C
Incompliance with:	ICAO annex 14, CAP437
Cable glands included:	2 x M25x1.5
Cable outer dimension :	12 - 16mm
Consumption:	8 Watt
Life expectancy:	100.000+ hours
Cable bottom entry:	2 x M25x1.5
Ingress Protection:	IP67
Cable glands:	2 x M25x1.5
Cable size:	12 - 16mm
Ambient temp:	-25°C to + 60°C
