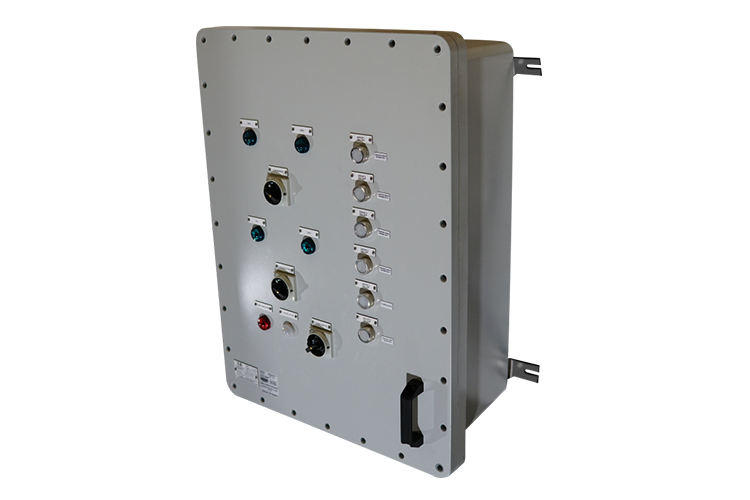

Q-Explosion Proof Offshore Control System WEX4
- ICAO annex 14, CAP437
Safe area Atex / Zone 1
Certificates
Technical details
Datasheet, Manuals and Drawings
Details Explosion Proof Offshore Control System WEX4
The Q-Offshore Explosion Proof Control System WEX4 has 6 standard groups and extra groups for the TD/PM System and Q-status light system that can be manually switched on and off. In addition to switching on and off groups, the Power Active and Fault light indicators are displayed.
EX Controller for Helideck lights:
Perimeter Lights
Floodlights
Windsock
Obstruction lights
TD/PM system
Status Light System
Order code Q31WEX
Q31WEX4-R1 Controller for Helideck Lights including, Q-Status Light System and TD/PM System
More EX Control Systems
Additional Information
| Article Number: | Q31WEX4 |
| Manufacturer: | Q-Aviation B.V. |
| HS-Code: | 94054039 |
| Warranty: | 2 Years |
Product Specifications Explosion Proof Offshore Control System WEX4
| Application: | Helideck |
| Zone: | Zone 1 or 2 |
| Enclosure: | Aluminium coated RAL7035 |
| Mounting: | Wall mount |
| Input Voltage: | 100-240 VAC 50-60Hz from circuit breaker C20A |
| Tested Ambient Temp: | -20°C to + 50°C |
| Cable bottom entry: | 12x M25x1.5 |
| Cable size: | 12 - 19mm |
| Consumption: | 5 Watt |
| Output voltage: | 100-240 VAC 50-60Hz |
| Cable: | H07RN-F 3x2,5mm² |
| Ingress Protection: | IP54 |
| In Compliance With: | ICAO annex 14, CAP437 |
| Fault detection: | Yes, Potential free relay |
| Hazardous area: | IECEx/Atex Zone 1 and 2 |
| Class: | Zone 1 Hazardous Area |
| Cable glands included: | 12x M25x1.5 |
| Ip index: | IP54 |
Size and Dimension
| Weight: | 26,4 kg |
| Dimension: | 835 x 610 x 315 mm |
| Dimension Packaging: | 900 x 700 x 350 mm |
