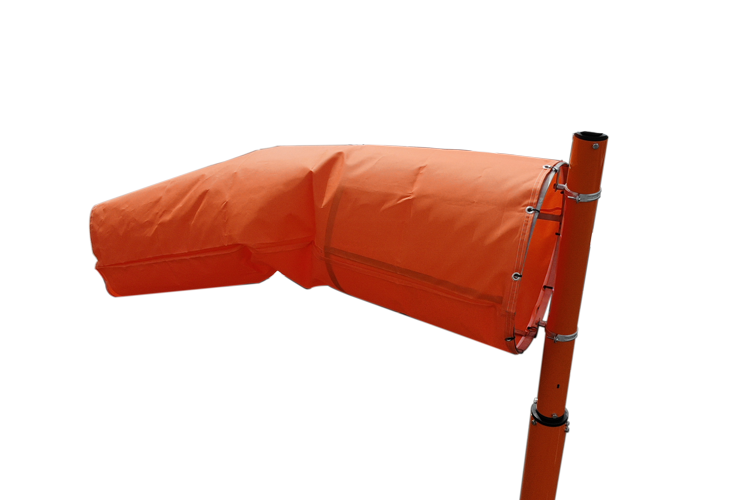

Q-WDI UNLIGHTED, FAA L-807 ORANGE
Certificates
Technical details
Datasheet, Manuals and Drawings
Details
The Full Frangible mast makes this wind direction indicator suitable to place near to the landing area. If a vehicle accidentally hits this unit, the mast breaks rather than causing serious damage to the vehicle.
Order code Q23UL94 - Q-WDI UNLIGHTED, FAA L-807 ORANGE
Q23UL94–R1More wind direction indicators
Additional Information
| Article Number: | Q23UL94 |
| Manufacturer: | Q-Aviation B.V. |
| HS-Code: | 94054039 |
| Warranty: | 2 years |
Product Specifications
| Application: | Heliport / Airfield |
| Suitable For: | Safe Area |
| Zone: | Safe Area |
| Assembly: | Windsock assembly |
| Mast specification: | Full Frangible, fiberglass and polyester resin, ø180,0 pole diameter (at base) x 4 mm (wall thickness) Mast coating: Orange, UV resistance coating |
| Enclosure: | Fiberglass / Stainless Steel (SS316) |
| Mast material: | Orange, UV resistance coating |
| Mast colour: | Orange |
| Mounting: | Riged foot |
| Windsock Frame: | SS316. Rotating Frame and Hoop |
| Tested Ambient Temp: | -20°C to + 60°C |
| Incompliance with: | ICAO annex 14, CAP437, FAA L-806 |
| Life expectancy: | 100.000+ hours |
| Ingress Protection: | N/A |
| Mast length: | 4.8m |
| Tiltable: | No |
| Windsock colour: | Orange |
| Windsock sizes: (Windsock not included) | Ø30 x 120 cm - 11,8” x 3.9ft. Ø45 x 250 cm - 17,7” x 8,2ft. Ø50 x 150 cm - 19,7” x 4,9ft. Ø60 x 240 cm - 23,6” x 7,8ft. Ø90 x 366 cm - 35,4” x 12,0ft. Ø90 x 375 cm - 35,4” x 12,3ft |
| Ambient temp: | -20°C to + 60°C |
| Windspeed: | Up to 75 Knots (140 km/hr) |
| Windsock colour: | Orange |
Size and Dimension
| Weight: | 350 kg |
| Dimension: | 600 x 32 x 80 cm |
| Dimension Packaging: | 1x colli, 1x pallet |
